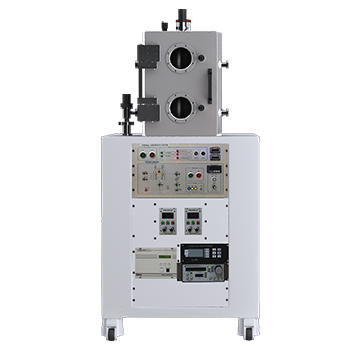

Thermal Evaporator
Determined after consultation Add to cart Quote request
Key Features
  • Compact, space-saving design
  • Delivers optimal performance and utilizing top quality sub-components.
  • High speed deposition
  • Ergonomic to operate, easy to clean
  • All stainless steel construction
  • Configured for your application
360VR

You can see the image to the left or right by turning the equipment

0%
    • Specifications
        Chamber Unit
      • Material : Stainness304 / Aluminum
      • Chamber size : 350x350x500
      • Front Open Door with Window(shutter)
      • ¼”VCR vent port
      • Pumping port/gauge/spare port
        Pumping Unit(Gauge)
      • Osaka turbo pump 450l/s ISO160 inlet flange
      • 400l/m Rotary pump
      • Ion gauge/convection gauge
      • Capacitance gauge(10torr NW16)
      • ATM sensor
      • Option : Load-lock unit/Cryo pump
        Substrate Unit
      • Material : Inconel600(High temp)
      • Water cooling stage : OFHC
      • Max Sample size : 6inch
      • Option : Up/down / Heating Max temp 400℃ / Rotation by motor/Bias for Cleaning
        Control Unit
      • System Manual operation
      • Option : Semi-auto Operation system - · 15inch Touch panel control · System reciepe · Interlock(Water/Pneumatic air) · Data loading
        Thermal evaporator Unit
      • W, Mo source evaporation boat install
      • Max current 300A( Electrical rod - cooling)
      • Pneumatic shutter for source
        Consumable Parts
      • W-boat
      • thickness sensor
      • Vacuum sensor
      • Oil in Rotary Oil Pump
      • O-ring
      • Window
      • Heating module
    • Facility Requirements
      Electrical power 220VAC 1ph 30A
      Compressed air 0.5~0.6Mpa
      Compressed air input size 6 mm one touch fitting
      Cooling water in/out 3/8" lok fitting
      cooling water flow Air temp 5~7liter/min
      cooling water pressure 0.1~0.2Mpa
      Pump exhaust NW25
      Rotary pump capacity 340liter/min
      Vent Turbo pump 450l/s
      Dry pump exhaust Power 2channel
    • Layout

    • Standard Warranty

      Each system is delivered with a limited warranty that covers parts, excluding consumable and wearable parts such as quartz ware and O-rings, for one (1) year from the date of commissioning of the system. Any parts confirmed to be defective will be sent to customer for replacement during the warranty period. *Note: Any unauthorized modification of the system will result in the voiding of warranty.

    • Delivery Time & Shipping Policy

      The delivery time is estimated to be 8-12 weeks upon receipt of order. Graphene Square Inc. ships each system to the customer site by Incoterms CIP (Carriage & Insurance Paid) air freight direct from its factory in Korea.
